MDC 2500 Series

New DNA added to Koden's radar -True trail function, ATA with up to 50 targets, Map overlay.

Features

  • Precise display of targets using true trail function and Koden's unique technology.
    The display shows exactly the movement of other vessels, while land and buoys are shown as stationary objects even while your vessel is moving. This makes it easy to distinguish moving from stationary objects. And our new signal processing technology ensures that even small targets are constantly displayed.
  • ATA with up to 50 targets as standard.
    The convenient ATA (Automatic Tracking Aid) function comes as standard. The latest movements of other vessels can be represented instantaneously in vector form and numeric form, ensuring safe navigation.
  • Map overlay with C-Map chart (NT+ or NT MAX) as standard function.
    C-Map chart (NT+ or NT MAX) is overlaid on the radar screen to provide clear radar pictures of coastlines, buoys, and other features.
  • AIS interface (option)
    When connected with an AIS receiver, the radar displays information on up to 200 targets, including the vessel name, bow direction, and vessel speed of each vessel with an AIS transmitter mounted.
  • Keyboard operation unit
    The radar has a separate operation unit, providing users with a choice of installation locations.
  • Dual station
    One antenna can be operated from two displays. This is highly effective for navigation of a double ended vessel with bridges in the bow and stern.

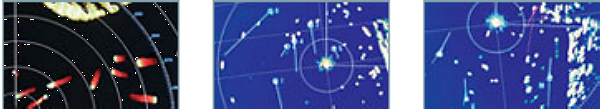

Screen image


True trail function                          ATA function                               AIS interface (Option)

Pricing

MDC-2500 SERIES 15" LCD COLOR RADARS WITH ATA AND C-MAP OVERLAY

MDC 2560-4
MDC 2510-6
MDC 2520-6
MDC 2520-9
6kW output, 1/8NM to 72NM range
12kW output, 1/8NM to 72NM range
25kW output, 1/8NM to 96NM range
25kW output, 1/8NM to 96NM range
4.5 ft. open antenna
6 ft. open antenna
6 ft. open antenna
9 ft. open antenna
$9,749.00
$10,725.00
$11,625.00
$12,075.00
